APG888 Epoxy Resin Automatic Pressure Gelation Hydraulic APG Process Machine

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Yibo Vacuum Drying Equipment Co., Ltd
[China]

Address
gaoxin indurstry park,luxi county Pingxiang Jiangxi
Phone
86-799-7672988
Contact name
Susan Lei

Quick Information

  • Brand Name: YIBO
  • Place of Origin: China
  • Model Number : APG888
  • :

Description

Product Description

APG888 Epoxy Resin Automatic Pressure Gelation Hydraulic APG Process Machine

 Main technical parameters


Machine nameAPG888 APG Clamping Machine
Clamping plate dimension800*800mm
Upper core-pulling stroke800mm
Lower core-pulling stroke500mm
Mould clamping force200KN
Mould clamping speed3.2m/min
Max mold clamping distance1450mm
Min mould clamping distance250mm
Power of hydraulic station5.6kW
Inclination angle of complete machineHoizontal 5℃
Weight of complete machine5900kgs
Mould-filliing weight6000KGS
Outline dimension5100*1380*3030mm



 APG machine (4).jpgepoxy resin APG Clamping Machine



APG machine (5).jpgAPG888 Epoxy Resin Automatic Pressure Gelation Hydraulic APG Process MachineAPG machine (6).jpgAPG machine (11).pngAPG machine (18).pngAPG machine (42).jpg

Company Information

APG888 Epoxy Resin Automatic Pressure Gelation Hydraulic APG Process Machine

APG machine (13).pngAPG machine (14).pngAPG machine (6).pngAPG machine (14).jpgAPG machine (15).jpgAPG machine (16).pngAPG machine (50).jpg

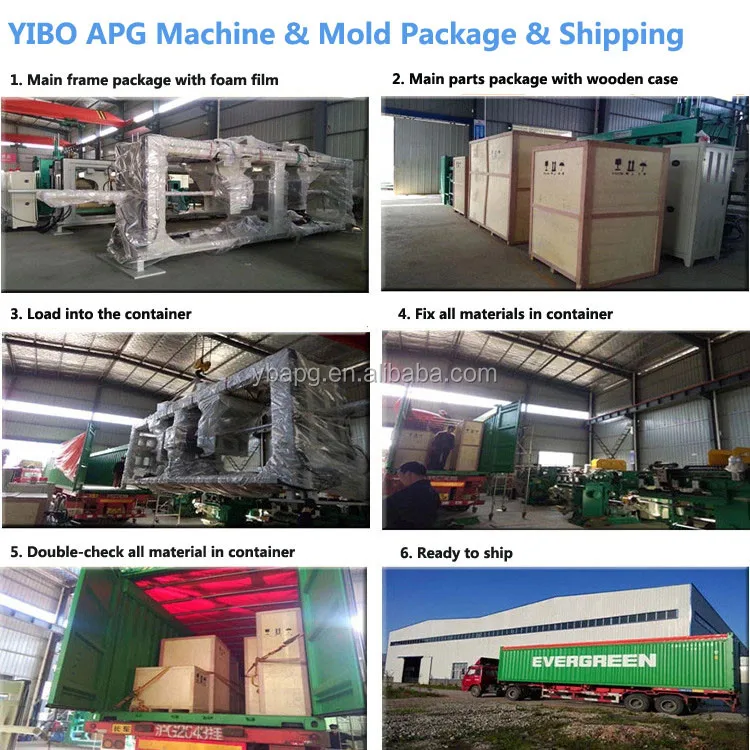

Packaging & Shipping

APG888 Epoxy Resin Automatic Pressure Gelation Hydraulic APG Process Machine

APG machine (54).jpg

APG Machine (58).jpg



Price

  • Delivery Port : Shanghai

Packaging & Delivery

  • Delivery Lead Time : 50 days
  • Supply Ability : 100 sets per year

Product Image

  • APG888 Epoxy Resin Automatic Pressure Gelation Hydraulic APG Process Machine image
